Degree of consolidation
Structures with their loads generate a stress change in the soil. In order to be able to calculate settlements in the soil due to this change in stress, it is necessary to know the spreading and distribution of the stresses in the foundation soil. The possibilities for stress calculation are described in the glossary entry "Calculation of settlements in geotechnics”.Structures with their loads generate a stress change in the soil. In order to be able to calculate settlements in the soil due to this change in stress, it is necessary to know the spreading and distribution of the stresses in the foundation soil. The possibilities for stress calculation are described in the glossary entry "Calculation of settlements in geotechnics”.
Cohesive soils react with delayed settlements which depend on the grain composition and the water content. The settlements in soil layers consist of three components:
Si are settlements that occur immediately and do not involve any changes in the volume of the soil. The soil deflects laterally under the load. This is often referred to as elastic settlement.
Sc is called consolidation settlement. It is associated with a volume change in the soil. The water present in the cohesive soil is squeezed out and the soil adopts a higher density. Due to the very low water permeability of cohesive soils, no equilibrium in grain-to-grain pressure can be established immediately after loading, but in the process of water squeezing out, this equilibrium will be established as the water content decreases. With time, therefore, the excess pore water pressure created by the loading will be reduced. The settlements are thus established by the reduction of the excess pore water pressure. Sc is also referred to as primary settlement. In non-cohesive soils, the primary settlements occur at time t = 0 because of the high permeability.
Secondary settlements Ss are caused by creep processes in the soil, and are caused by long-lasting viscous flow phenomena of the grain structure. In the time-settlement diagram, the secondary settlements can be seen to grow steadily after the primary settlements. The time-settlement line therefore does not asymptotically approach a horizontal line.
Immediately after the immediate settlement Si (t = 0) the consolidation process starts, the consolidation settlements Sc grow. The transition from primary and secondary settlements is defined - in the logarithmic scale – by the intersection of the tangent to the turning point of the time-settlement line for the primary settlement and the extension of the straight line describing the secondary settlements as shown in the following figure.
According to Terzaghi (1923), the differential equation describing a one-dimensional consolidation process is:
This equation is a partial linear and homogeneous differential equation of 2nd order. The solution of the differential equation is discussed in the glossary entry "Terzaghi’s consolidation theory”.
The primary settlement of a cohesive soil s(t) results from the volume of water squeezed out. It tends towards a limit value s(t = ∞) which represents the maximum value or the final settlement. Their ratio is called the degree of consolidation uk.
The effective stress σ‘ acts as the settlement-generating stress in a soil layer at a time t. The neutral stress u at time t is composed of the hydrostatic pore water pressure u0 and the excess pore water pressure Δu, whereby only the excess pore water pressure Δu is decisive for the consolidation theory. Thus, the following applies to the consolidation calculations
By integrating the settlement-generating - effective - stresses, divided by the constrained modulus, the settlement of a soil layer is obtained. The final settlement can be determined:
For a considered time t, the effective stresses can be calculated with
The corresponding settlements are
The degree of consolidation uk is thus given by

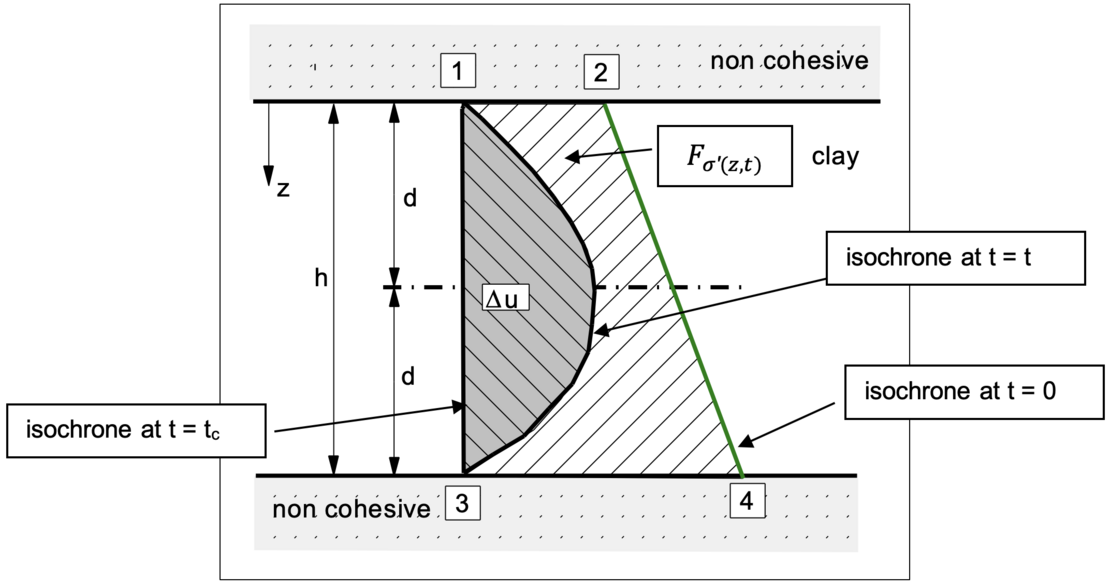

The degree of consolidation uk is the ratio of the hatched area Fσ‘(z,t) (= effective stresses at time t) to the total load area F1234 as effective stress at time t = ∞. As an example, the distribution of effective stresses and excess pore water pressure is shown here for a clay layer to be consolidated for a two way drainage.
The degree of consolidation uk can be calculated as a function of time t for a two way drainage with a linear isochrone at time t = 0
and for a one way drainage with
For different initial conditions described by the isochrone at time t = 0, the above equation can be simplified:
Δuo = Δuu: constant pore water pressure distribution over the soil layer to be drained
Δuo = 0: pore water pressure distribution increasing linearly with depth over the soil layer to be consolidated
Δuu = 0: linear with depth, decreasing to zero pore water pressure over the soil layer to be consolidated
For the example shown of an 8 m thick clay layer loaded with an unlimited surface load of p = 25 kN/m², the time for a degree of consolidation of Uk = 85 % and the corresponding settlement of the ground surface are to be determined in accordance with the one-dimensional consolidation theory using the computer program GGU-CONSOLIDATE.
