Only available in german language.

Analysis of material transport in non cohesive soils using the following methods:

• Filter stability after Cistin/Ziems
• Suffusion safety after Kenney/Lau
• Suffision safety after Burenkova
• Interface erosion at layer boundaries complient with TAW 

described in Code of Practice “Material Transport in the Soil“ (German: “Merkblatt Materialtransport im Boden (MMB)“, published by Bundesanstalt für Wasserbau (BAW) in Karlsruhe, 2013)

and

• filter stability of geotextile filters;

described in DWA-M511 Code of Practice “Filters using geosynthetics”, (German: “Filtern mit Geokunststoffen“, 2015).

Capabilities:

• Manual system data input or data import from the computer program GGU-SIEVE  (determination and presentation of grain size distribution curves, Version 14 and upwards)
• For interface erosion at layer boundaries, permeabilities for common soils can be selected from an expandable database
• Consideration of soil grain shape compliant with DB guideline 836 (module 836.4602A01: “Tiefenentwässerungen, Nachweise der Filterstabilität von Filtern/Dräns” (Deep drainage, analysis of the filter stability of filters/drains), 1st revision, 01 October 2008)

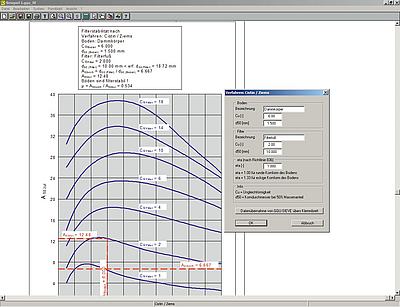

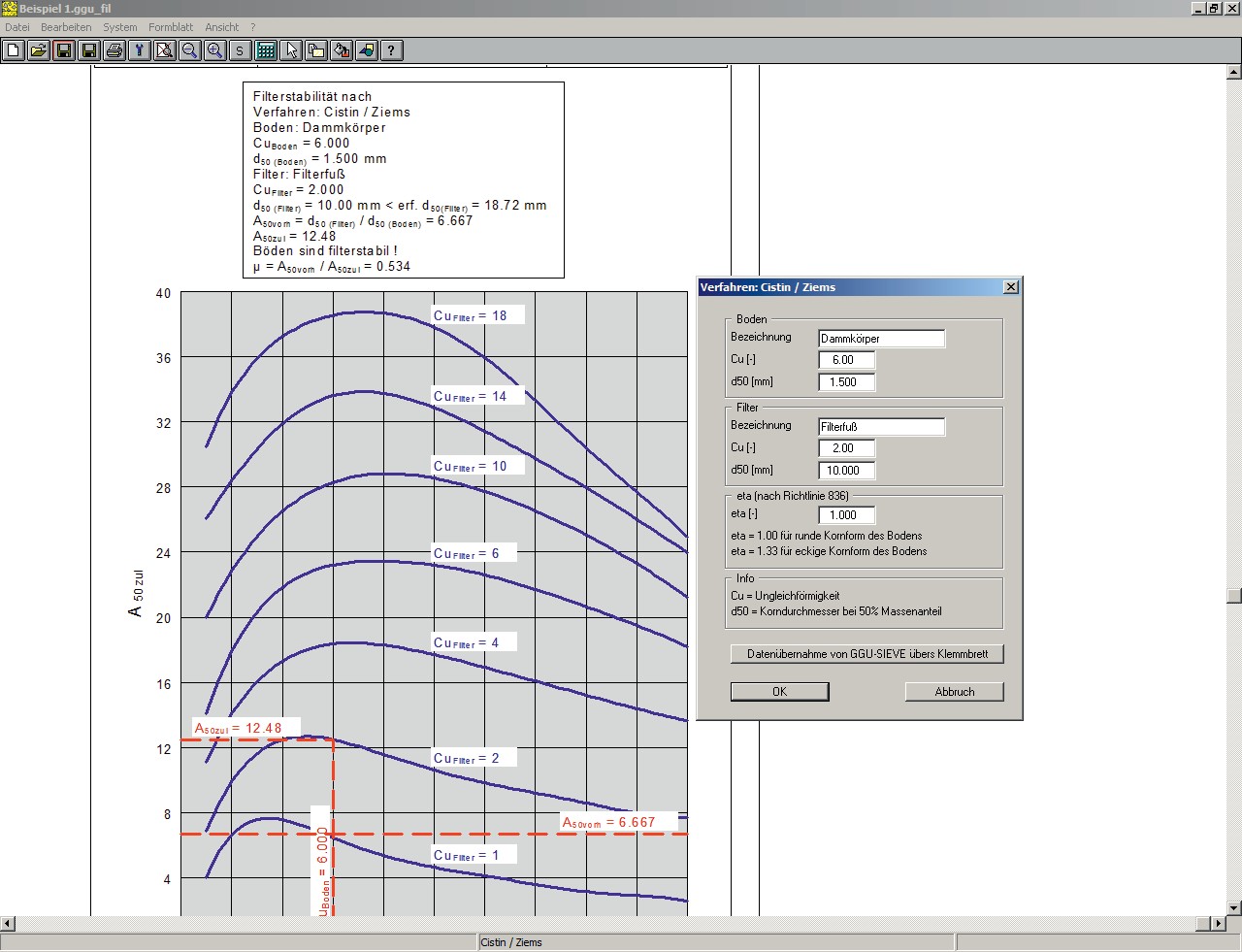

• Visualization of the allowable interval ratio between the filter and the soil to be protected as a function of their uniformity coefficient in the Cistin/Ziems diagram
• Design of geotextiles and search for optimal product following the analysis of the filter stability of geotextile filters compliant with the DWA-M511 Code of practice
• Visualization of suffosion saftey after Kenney/Lau, very convenient as a data import from the computer program GGU-SIEVE possible

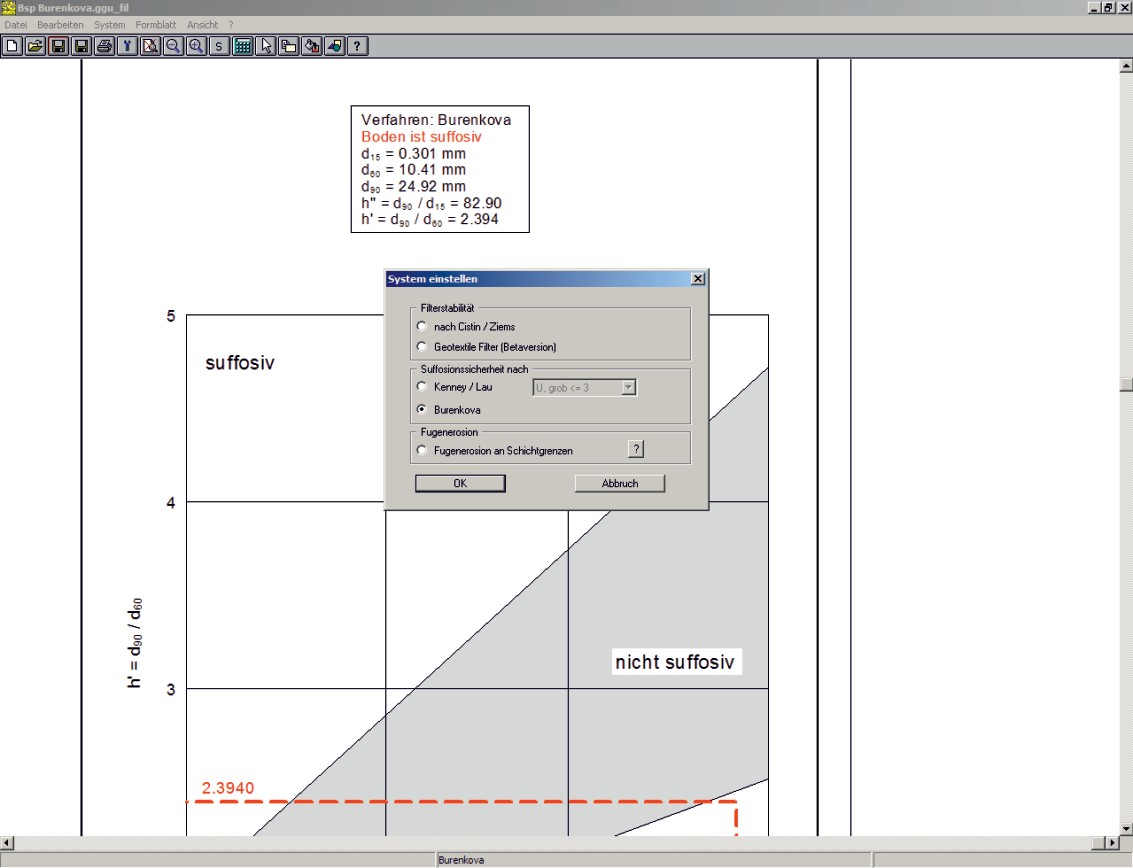

• Visualization of suffosion saftey after Burenkova
• Visualization of interface erosion at layer boundaries in a model compliant with TAW
• Input data and analysis results displayed in a legend
• Examples from DB guideline 836 and „Merkblatt Anwendung von Kornfiltern an Wasserstraßen“ (MAK) published by Bundesanstalt für Wasserbau (BAW) in  Karlsruhe
• User-defined design of output sheet
• Print or copy screen sections, e.g. for transfer to a word processor
• Integrated Mini-CAD system for additional annotation of graphics

Current updates & changes

• 4.02 (30.08.2022)

  • Product list geotextile filters updated
  • Product maintenance

• 4.01 / 3.08 (03.09.2020)

  • Bugfix: Test range Burenkova now up to d90/d15 = 130.

• 4.00 (30.04.2019)

  • Mini-CAD: Layer designations can be defined.
  • Expandable database with soil properties for common soils.
  • PDF import implemented.
  • Screen visualisation accelerated.

  Info: Paid major update (free of charge for licensees with subscription or update insurance under the software service agreement)

• 3.05 (07.11.2017)

  • product management



• 1.12 (20.02.2013)

  • Bugfix: Burenkova method
