GGU-SLICE

GGU-Slice GGU-SLICE

Analysis of the slope slice stability


GGU-CONNECT ready

Capabilities:

  • Choice of analysis using either partial safety factors according to EC 7, DIN 1054:2010 or global safety factors (DIN 1054 old)

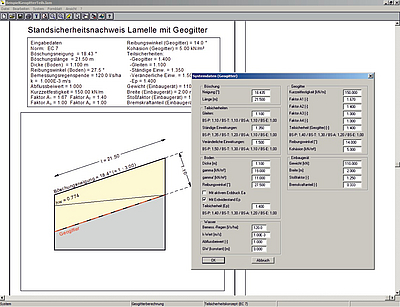

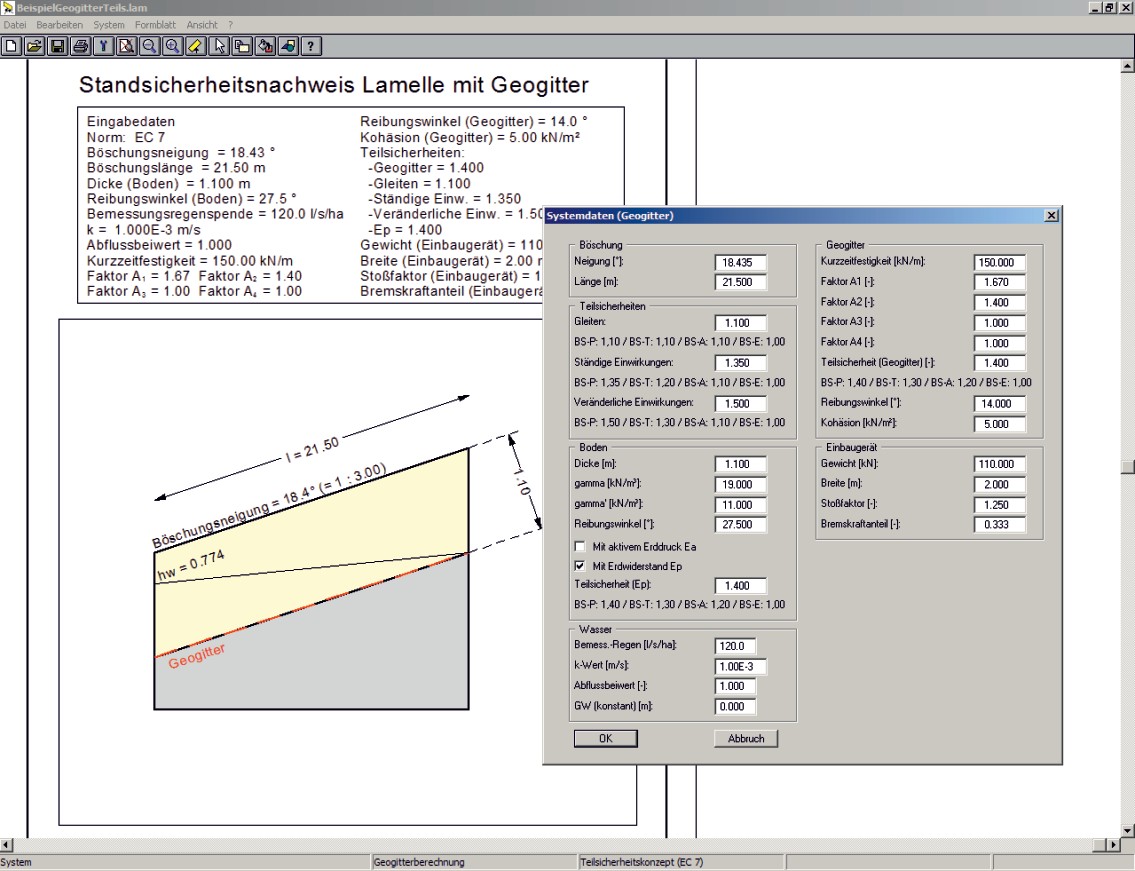

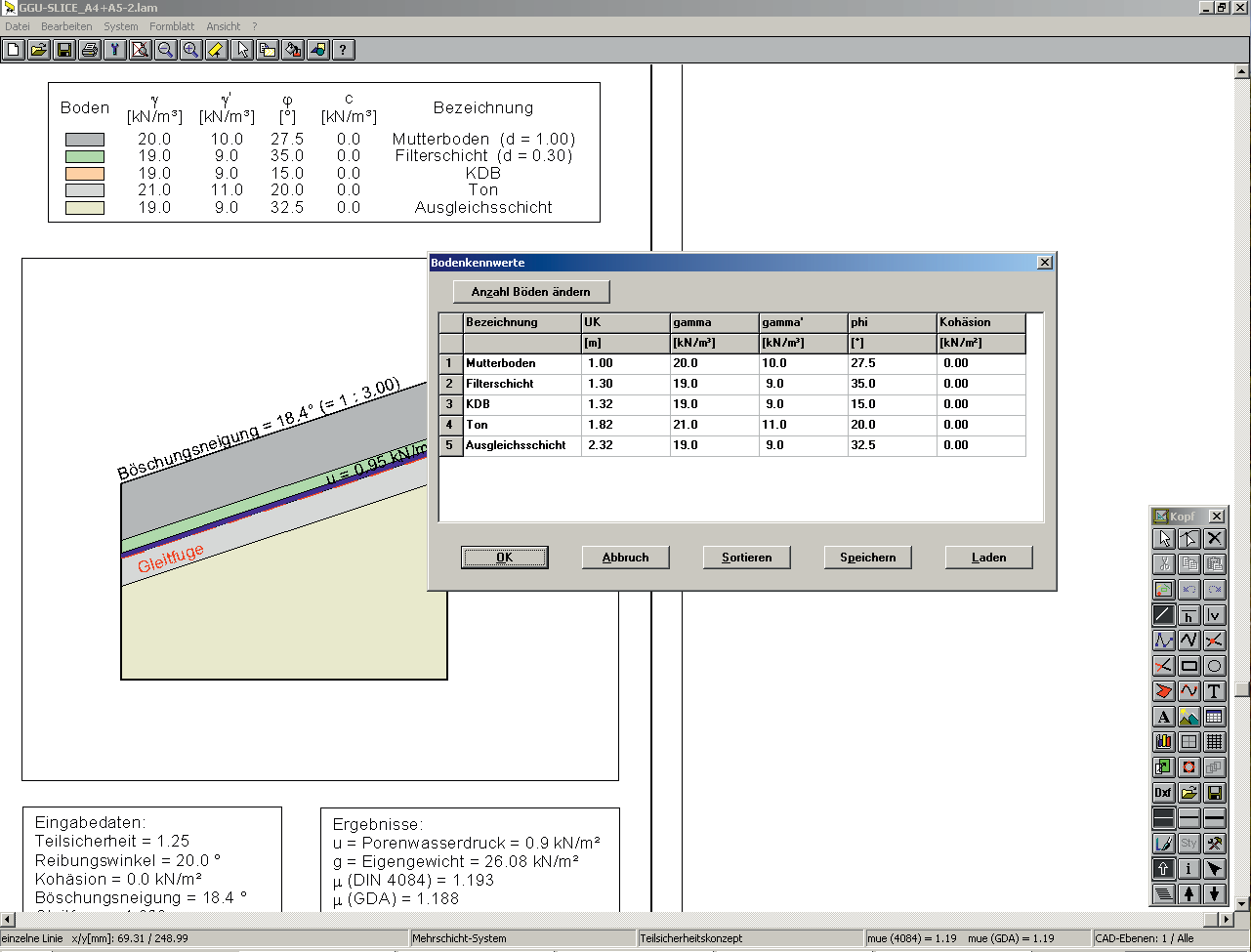

  • Input as single-layer or multi-layer system or as a system using geogrids
  • Soil properties can be selected from an expandable database of common soils
  • Optimization of friction angle, groundwater level, cohesion, slip plane or slope angle for a single-layer system
  • Calculation of safety factors according to DIN 4084 or in accordance with the Recommendations of the Working Group on 'Geotechnical Aspects of Landfill and Brownfield Site' (GDA)
  • Computation of the water storage depth for a rainfall event after DRESCHER possible
  • Consideration of installation equipment possible
  • Monte-Carlo simulation for an estimate of the influence exerted by individual parameters as e.g. geometry, soil parameters
  • Analysis of wave pressure
  • Visualization of the critical slip surface
  • Legends for soil properties, input data and results
  • Adopted standard, program name and version can be included in the input data legend
  • User-designed output sheet
  • Print or copy screen sections, e.g. for transfer to a word processor
  • Integrated Mini-CAD system for additional annotation of graphics




Current updates & changes

  • 7.03 (18.03.2024)
    • GGU-CONNECT ready integration
  • 7.02 (14.03.2023)
    • Design situation 'DS-E' according to current standard now 'DS-A/DS-E'
  • 7.00 (13.02.2019)
    • PDF import implemented.

    • Mini-CAD: Layer designations can be defined.

    • Expandable database with soil properties for common soils.

    • Screen visualisation accelerated.

    Info: Paid major update (free of charge for licensees with subscription or update insurance under the software service agreement)

  • 6.00 (06.03.2012)
    • Partial safety factors to Eurocode 7
    • Program name and version can be displayed in the General legend.



  • 5.02 (11.02.2011)
    • Bugfix: Open/Save dialog box in Vista and Windows 7.




Show all entries

Online-Shop:

1x Floating Network License

10h PayPerUse

264,00 €

1x Floating Network License

365 days rent

117,81 €

1x Non-Network License

365 days subscription

78,54 €

1x Floating Network License

30 days rent

26,78 €

All prices incl. VAT

Information about our licenses


Simple and secure processing!

During the further order process you switch to the store system of our technology partners "WIBU Systems" and "cleverbridge". You can find out more about these companies under the following links.

System preferences

GGU-Software runs on PCs with the following specifications:

  • Pentium III or higher processor
  • Microsoft Windows® (SAC), 11, Server 2016, 2019 and 2022 compatible
  • 500 MB free hard disk space
  • DVD-ROM drive or internet connection (for installation)
  • USB Interface 2.0 or higher (for licence CmStick dongle)
  • CmActLicences NOT on virtual maschines
