GGU-COMPACT

Evaluation and presentation of proctor compaction tests

Capabilities:

  • Input of 16 single tests maximum
  • Container weights definable via database
  • Importing of up to 15 ’extra tests (proctor curves)
  • Volume input with metal plate to Annex B (DIN EN 13286-2:2010)

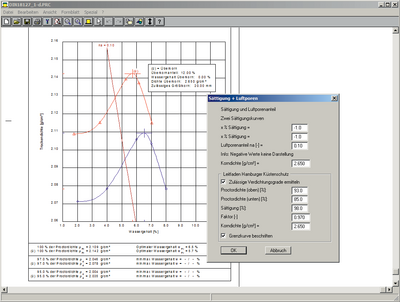

  • Visualisation of saturation curve
  • Visualisation of air space ratio
  • Visualisation of the corrected proctor curve for coarse-grained soils with oversize grain
  • Visualisation of oversize grain as curve
  • 4 separate smoothing out procedures
  • Consideration of the Hamburg Coastal Defence Guideline
  • Fixed axes scale definable
  • Input of individual densities, optionally referenced to the corrected curve
  • Input of user-defined proctor densities, optionally for oversize grain
  • Result output table, optionally with graphics visualisation on output sheet (A3)
  • Free design of form
  • Print or copy screen sections, e.g. for transfer to a word processor
  • Integrated Mini-CAD system for additional annotation of graphics
  •




Current updates & changes

  • 9.00 (26.02.2019)
    • Mini-CAD: Layer designations can be defined.
    • PDF import implemented.
    • Screen visualisation accelerated.

    Info: Paid major update (free of charge for licensees with subscription or update insurance under the software service agreement)




  • 8.23 (01.09.2017)
    • product management



  • 8.21 (13.06.2013)
    • Project now has three input lines.



  • 8.20 (08.11.2012)
    • Data input improved.



  • 8.12 (11.02.2011)
    • Bugfix: Open/Save dialog box in Vista and Windows 7.
    • Mini-CAD Version 7.10: Layers can be hidden and unhidden.




Show all entries

Online-Shop:

Single Program Subscription *

1 Year subscription NNL247,91 €

Single Program for CmStick

30 days FNL89,00 €
1 Licence FNL743,75 €

Complete GGU-Suite for CmActLicense *

10 hours PayPerUse NNL **240,00 €
1 Year subscription NNL **5.890,50 €

All prices incl. VAT

*: CmActLicense, no need of CmStick, always current major program versions. Not for virtualisation OS.
NNL: Non-network licence
FNL: Floating-network licence
**: Only available outside Germany, Austria and Switzerland

System preferences

GGU-Software runs on PCs with the following specifications:

  • Pentium III or higher processor
  • Microsoft Windows® 7, 8, 8.1and10 compatible
  • 500 MB free hard disk space
  • DVD-ROM drive or internet connection (for installation)
  • USB Interface 2.0 or higher (for licence CmStick dongle)
  • CmActLicences NOT on virtual maschines
