GGU-Density GGU-DENSITY

Determination and visualisation of soil density to German Standard DIN 18125, Part 2

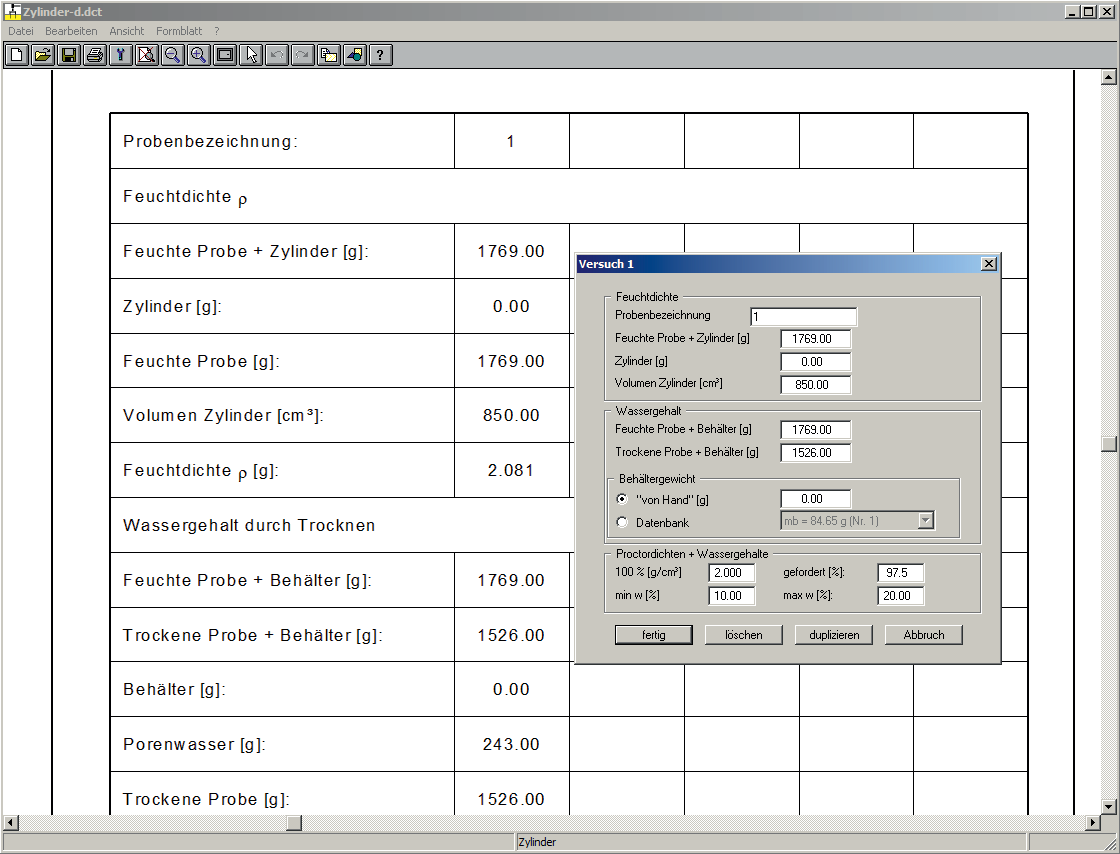

The program provides three different methods of density determination:

  • Mould method
  • Sand replacement method
  • Densitometer method

Capabilities:

  • Input of up to 15 tests
  • Container weights definable via database Determination of water content, density, wet density, dry density and compaction according to selected method
  • Determination of specific weight, void ratio, pore content, degree of saturation and air space ratio using cylinder evaluation with derived values
  • Result visualisation in a free definable table
  • Free design of form
  • Print or copy screen sections, e.g. for transfer to a word processor

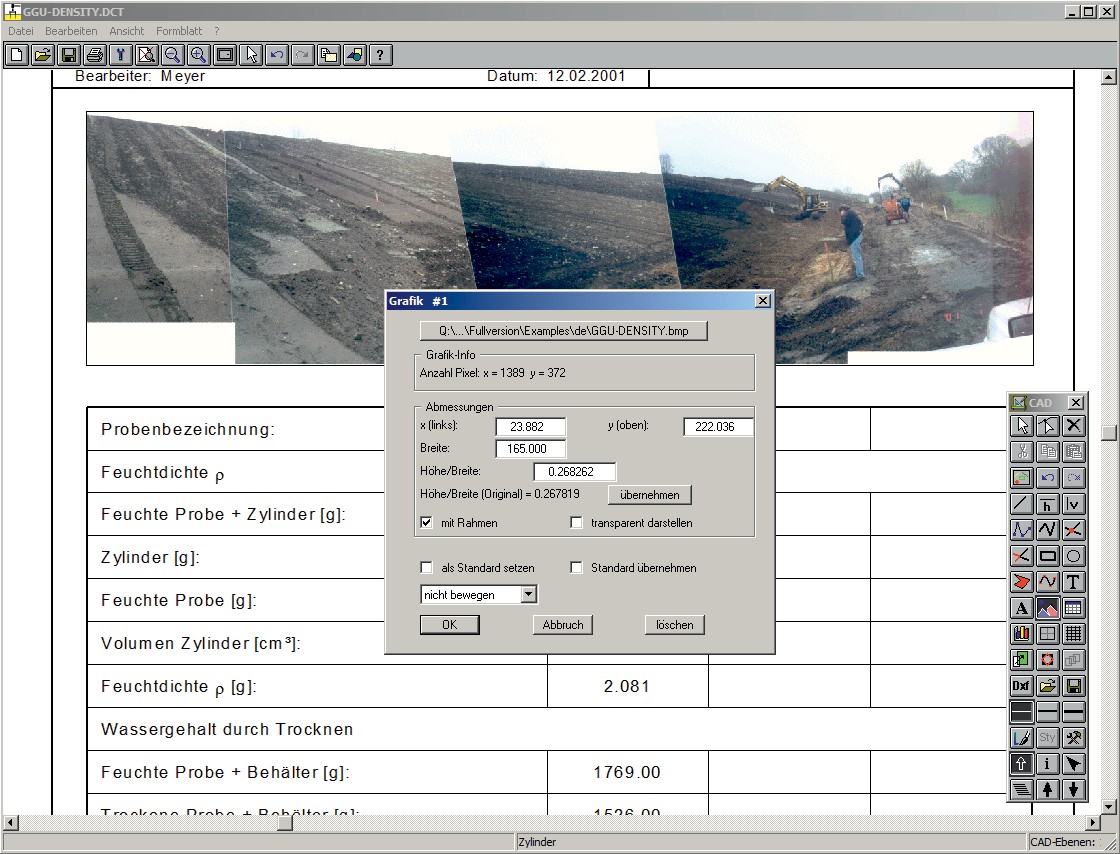

  • Integrated Mini-CAD system for additional annotation of graphics




Current updates & changes

  • 6.00 (26.02.2019)
    • Mini-CAD: Layer designations can be defined.
    • PDF import implemented.
    • Screen visualisation accelerated.

    Info: Paid major update (free of charge for licensees with subscription or update insurance under the software service agreement)



  • 5.08 (07.06.2018)
    • Product management



  • 5.07 (27.05.2016)
    • Compaction degree now also dimensionless.
  • 5.05 (13.06.2013)
    • Project now has three input lines.



  • 5.04 (28.11.2012)
    • Product management




Show all entries

Online-Shop:

Single Program Subscription *

1 Year subscription NNL115,03 €

Single Program for CmStick

30 days FNL41,00 €
1 Licence FNL345,10 €

Complete GGU-Suite for CmActLicense *

10 hours PayPerUse NNL **240,00 €
1 Year subscription NNL **5.890,50 €

All prices incl. VAT

*: CmActLicense, no need of CmStick, always current major program versions. Not for virtualisation OS.
NNL: Non-network licence
FNL: Floating-network licence
**: Only available outside Germany, Austria and Switzerland

System preferences

GGU-Software runs on PCs with the following specifications:

  • Pentium III or higher processor
  • Microsoft Windows® 7, 8, 8.1and10 compatible
  • 500 MB free hard disk space
  • DVD-ROM drive or internet connection (for installation)
  • USB Interface 2.0 or higher (for licence CmStick dongle)
  • CmActLicences NOT on virtual maschines
